Permanent
Magnet Vacuum filter |

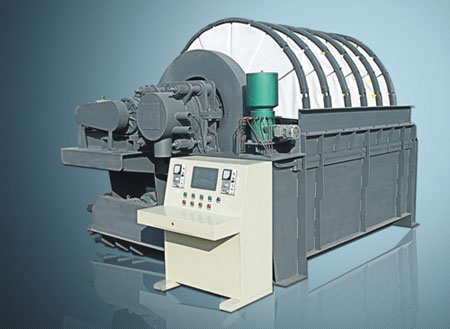

SHPG type vacuum
filter is the use of vacuum filtration as motivation,
paste for solid-liquid separation equipment,
Its main distribution from the first, the bearings,
guided materials and discharge devices, filter
plates, spindle, stirring devices, cell body
to mine devices, stirring drive, Spindle drive,
centralized lubrication system, and other major
component parts, absorbing domestic and foreign
models advantage against metal mineral density,
settlement rate, viscosity of optimizing the
design and structure are durable, smooth functioning
filter plate, Automatic Transmission stirring
reliable seal to prevent leakage Pulp advantages,
such as filter fans from engineering plastics
made from high-strength, porosity, high-strength
nylon filter fabric single thick, smooth surface,
dumping high rate of cake difficult to plug,
long life, All these features ensure that the
metal minerals in dehydration was excellent
indicators of dehydration.
SHPG Disc vacuum filter technology parameters
:
|
Model |
Filtration area
（m2） |
Filter disk speed（rpm） |
Mixing speed
（KW） |
Spindle motor power
（KW） |
Power mixer
（KW） |
Dumping of cake |
Dimensions |
Machinery |
| SHPG-9 |
9 |
0~1
CVT |
0~110
CVT
|
3 |
4 |
Anti-Hairdryer
|
6580×2510×2120 |
6.5 |
| SHPG-12 |
12 |
3 |
4 |
6983×2510×2120 |
7.5 |
| SHPG-15 |
15 |
3 |
4 |
7410×2510×2120 |
8.5 |
| SHPG-20
|
20 |
4 |
5.5 |
3585×2900×2700 |
10.5 |
| SHPG-30 |
30 |
4 |
5.5 |
4385×2900×2700 |
12 |
| SHPG-40 |
40 |
4 |
7.5 |
5185×2900×2700 |
14.5 |
| SHPG-60 |
60 |
5.5 |
7.5 |
4800×4200×3545 |
20.2 |
| SHPG-72
|
72 |
5.5 |
7.5 |
5300×4200×3545 |
21 |
| SHPG-96 |
96 |
7.5 |
11 |
6300×4200×3545 |
24 |
| SHPG-120 |
120 |
7.5 |
11 |
7300×4200×3545 |
25.8 |
|
|
|
|
|
|
