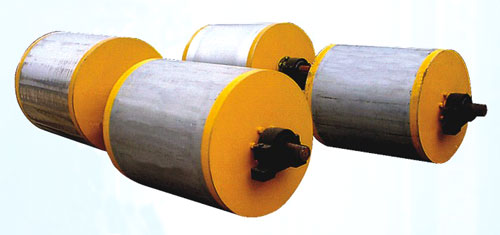

Permanent
magnetic drum |
CT-permanent magnetic
drum for the poor iron plant early elections
were broken or broken after the roughing operations,
to rule out the possibility that some waste
rock under and reduce the burden of operations.
For the rich iron ore smelting operations of
the former, ores initially broken, broken after
the magnetic drum lose most of waste rock, raising
furnace grade. For the reduction of hematite
closed baking operations, magnetic roller hours
after the election. will not fully reinstate
the ore (ore) to re-burn baking quality control.
Casting for the old industries of iron sand.
China's power industry coal and iron industries,
interspersed with ferromagnetic objects, materials
purification. The Tu-160 is the use of permanent
magnetic drum generated by magnetic force, a
belt of material automatic rotation of some
waste rock. waste exclusion, and thus accomplish
the separation operation.
Main technical parameters
|
Model |
size（mm） |
Width （mm） |
Magnetic Field（mT） |
Granularity（mm） |
Handling capacity
（t/h） |
|
CT-56 |
Φ500×600 |
500 |
120-300 |
10-75 |
70 |
|
CT-66 |
Φ630×600 |
500 |
120-300 |
10-75 |
80 |
|
CT-67 |
Φ630×750 |
650 |
120-300 |
10-75 |
110 |
|
CT-87 |
Φ800×750 |
650 |
120-300 |
10-75 |
140 |
|
CT-89 |
Φ800×950 |
800 |
120-500 |
10-100 |
180 |
|
CT-811 |
Φ800×1150 |
1000 |
120-500 |
10-100 |
230 |
|
CT-1014 |
Φ1000×1400 |
1200 |
120-500 |
10-300 |
300 |
Note : English sizes, tube surface magnetic
field in response to user needs Availability.
|
|
|
|
|
|
