HF riddler |

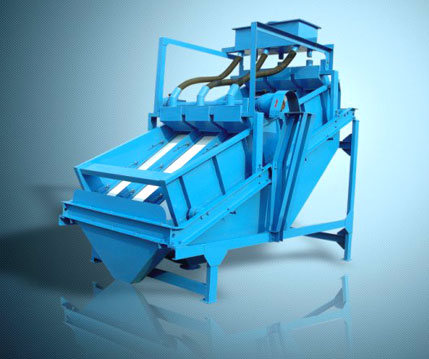

ZDS series of high-frequency
vibration of the main screen features :
1、Reliable and continuous operation of the real
high-frequency According to the machines.
2、Mr Ko time, low amplitude, can effectively
reduce the surface pulp capacity that will benefit
small and heavy materials from the stratified
analysis and speed up the fine, heavy materials
through the sieve, sieve product is the next
significant accumulation.
3、More way to mine, utilization of the screen
surface, equipment handling capacity, low power
dissipation.
4、Rubber box spring bearing tendons, acoustic
isolation, low noise, equipment dynamic load
small, low concrete foundation.
5、Upon request may choose to wear-resistant
polymer laminated stainless steel sieve or gluten
network.
ZDS series of high frequency vibration sieve
technical parameters
|
Model |
Vibration frequency
|
Screen surface specifications
1×b
（mm）Screen surface of a few×Rise |
Size Separation
（mm） |
Productivity |
Power driven |
|
ZDS-900-3 |
2850 |
700×900-3×1 |
0.045-3 |
2-16 |
1.5 |
|
ZDS-1200-3 |
2850 |
700×1200-3×1 |
0.045-3 |
5-20 |
2.2 |
|
ZDS-1200-2 |
2850 |
1000×1200-2×2 |
0.045-3 |
7-30 |
2.2 |
|
ZDS-1400-3 |
2850 |
700×1400-3×1 |
0.045-3 |
8-25 |
3.0 |
|
ZDS-1400-2 |
2850 |
1000×600-1×2 |
0.045-3 |
8-30 |
3.0 |
|
ZDS-4 |
2850 |
1000×600-1×2 |
0.09-3 |
15-35 |
1.5 |
|
ZDS-6 |
2850 |
1000×600-1×2 |
0.09-3 |
20-45 |
2.2 |
|
|
|
|
|
|
