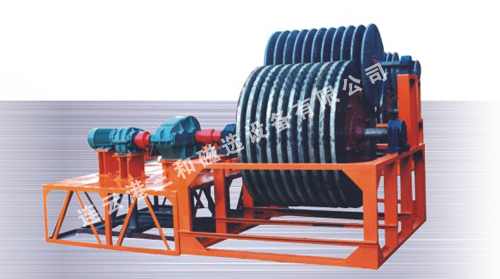

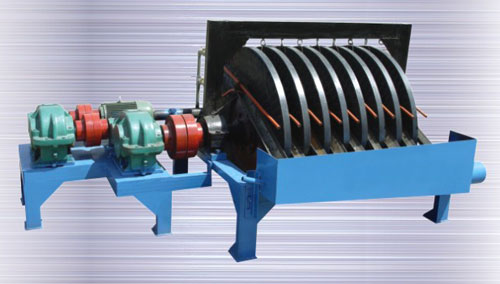

LCP Exposed
magnetic-disk magnetic separator |
LCP
Exposed magnetic-disk magnetic separator is
my company's efficient weak magnetic field
strength recovery equipment, The machine is
mainly for fine strong magnetic mineral separation
and from non-magnetic materials removed paste
mixed with the magnetic minerals. Iron applicable
flow from the plant, fine granularity, Magnetic
low-grade or roasting magnetic tailings slurry,
as well as steel mills iron dust from the
recovery of strong magnetic minerals, The
plane used for iron tailings re-election,
the tailings were selected to grade 9% The
machines selected by the rougher concentrate
products undergo corresponding after beneficiation
process. Concentrate grade can achieve 60
-65%.
|
Models and specifications |
LCP1006 |
LCP1008 |
LCP1208 |
LCP1508 |
LCP1510 |
LCP2012 |
| Diameter（mm） |
1000 |
1000 |
1200 |
1500 |
1500 |
2000 |
| Disc
number |
6 |
8 |
8 |
8 |
10 |
12 |
| Magnetic
field strength（mT） |
145 |
145 |
145 |
145-160 |
145-170 |
145-220 |
| Handling
capacity （ m3） |
220-500 |
300-600 |
500-800 |
1000-1800 |
1400-2000 |
3000-4500 |
| Speed
（r/mm） |
3.2 |
3.2 |
2.5 |
2 |
2 |
2 |
| Note
: The above recycling machines based
on the number of disk volume size
changes. |
|
|
|
|
|
|
